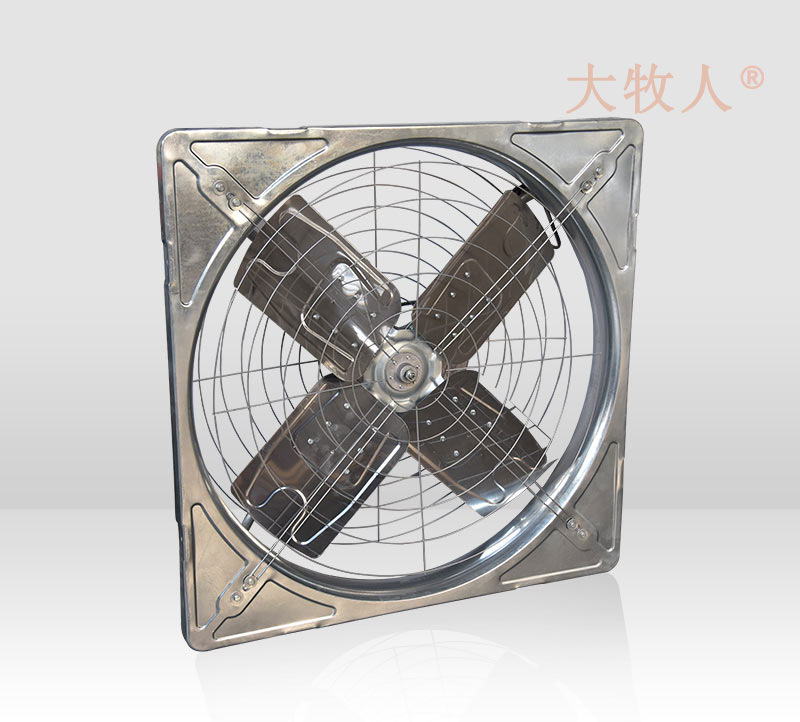

Cowshed Fan FX-1120 (Four-leaf fan)

Date：2021-01-29 14:46:12　　Click：　　Author：Damuren


Brand ManufacturerShandong Damuren Temperature Control Equipment Co., Ltd.
Specification and modeldmr1120--4
Technical Parameters1. Outline dimension: 1120*1120*320 mm
2. Blade diameter: 1000mm Quantity: 4 pieces
3. Blade material: 430 stainless iron
4. Blade thickness: 1.0mm
5. Material and thickness of air collector: Hot galvanized plate 1.0mm
6. Skeleton material: Hot galvanized pipe
7. Motor model: YNF100-8-0.4KW, Shunbao Brand
8. Motor's rated power: 0.4kw
9. Rated voltage of motor: 380v
10. Actual running current of motor: 1.3A
11. Motor's rated power: 50/60HZ
12. Motor rotating speed: 700 r/pm
13. Motor; 100% copper wire
14. Insulation grade: F
15. Protection level: ip55
16. Air volume: 20500m3/h
17. Wind speed: Fan is installed at 6m position, 3.5-3.8m/s
18. Working mode: S1
19 Wiring mode: Y
